LC Miller Re-Coil Terminal Block Assembly 5191-A

Adaptability to any coil configuration is the paramount feature of this Re-Coil Terminal Block Assembly. Mounting bars may be reversed for horizontal axial mounting, and cooling water channels accommodate round or square tubing in four standard sizes.

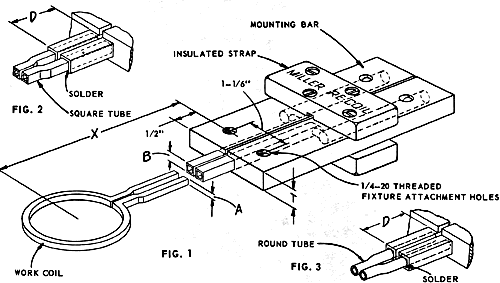

To install, locate coil in relation to fixture and coil mounting bars. (See Fig. 1). Insert coil ends into tubing opening a minimum distance of 3/4" (See Fig. 2). Distance "X" from center of work coil to center of fixture attachment holes is determined by depth of insertion of work coil ends. When properly located, soft solder, clean and pressure test for leaks and flow before use.

Catalog
Number

"A" Dimension
(Coil Tubing O.D.)
"B"
DIM.
"D"
DIM.
"T"
DIM.

5190-A-109
3/32"
3/16"
3/4"
3/8"
 5191-A-125
1/8"
1/4"
3/4"
3/8"
 5191-A-156
5/32"
1/4"
3/4"
3/8"
 5193-A-187
3/16"
5/16"
3/4"
3/8"
 5193-A-215
.215"
5/16"
3/4"
3/8"
 51951-A-215
.215"
5/16"
3/4"
1/2"
  5195-A-250
1/4"
3/8"
3/4"
1/2"

Note: When ordering, please specify size by catalog number.

Work coil not included in price.

Length "D" can be produced to your requirements. Write or call L.C. Miller Company for price.

The L. C. Miller Company specializes in design, repair and manufacture of custom coils and fixtures. Engineering assistance is available, without obligation, upon request.
